92- Colombian Collar Bomb Breakout

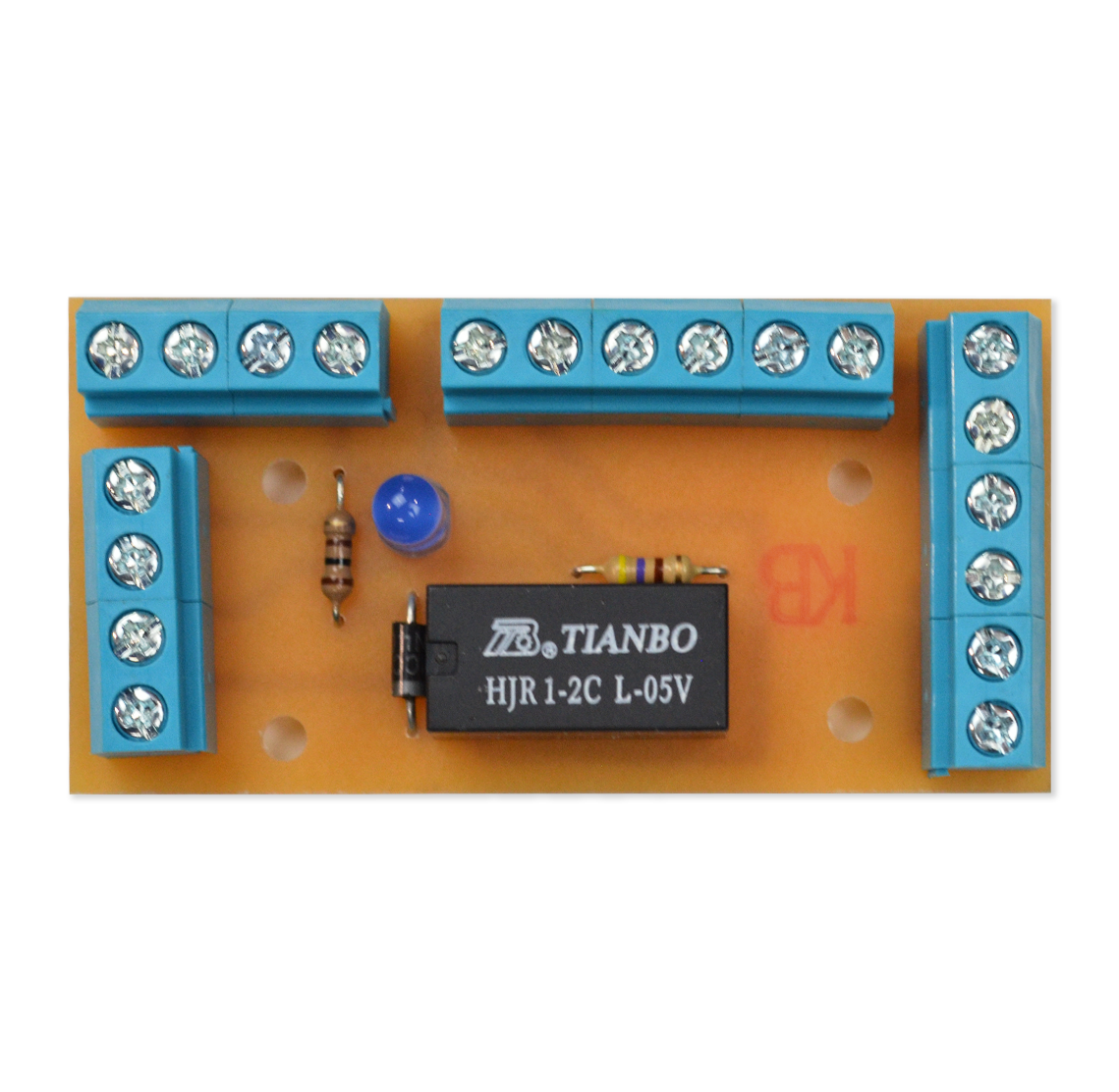

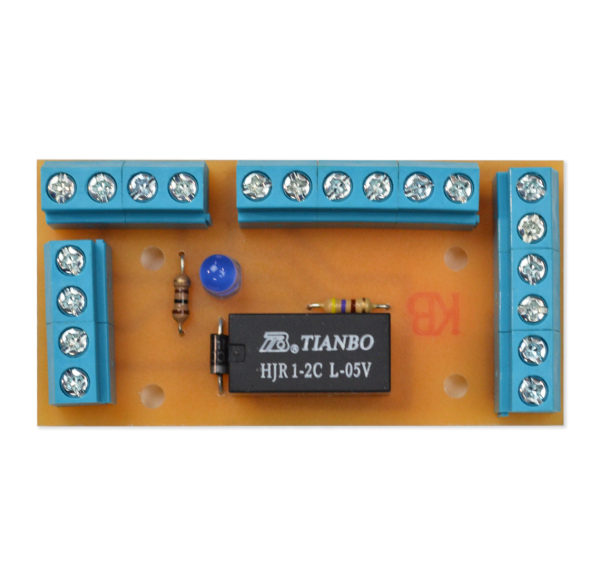

This circuit is like the collapsing circuit; except we have included a trap switch (SW1) to use as a victim operated switch. The circuit is essentially two circuits. The control circuit consists of the battery (B2), a diode (D1), the relay coil (RY1) and R1. The firing circuit consists of the switch side of the relay, the firing battery (B1), the two detonators which are in parallel with each other, LED1 and the pull-down resistor (R1). All of that is in series to the safe and arm switch (SW1).


Choose “Full Kit (PCB + Parts)” for a solder kit that includes all required parts for the build, a quick reference card and support from our amazing community of makers.


Choose “Assembled and Tested” for a fully assembled and tested ready to use device and reference card.

This product is currently out of stock and unavailable.
