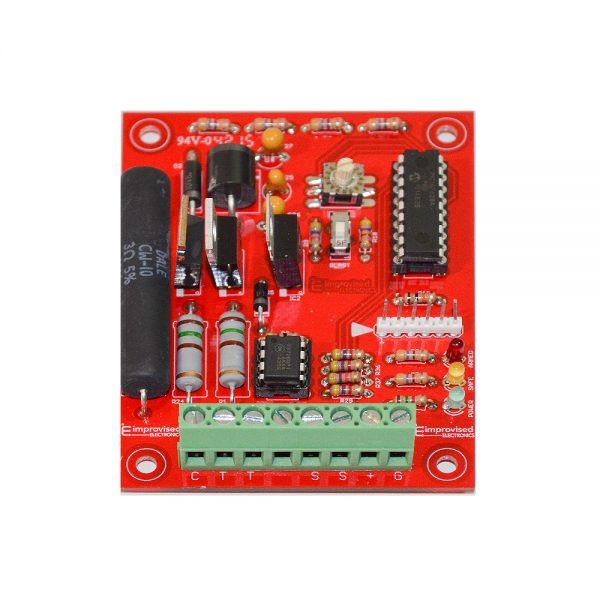

Basic Simulator Control Board (BSCB)


Build your own simulator with the BSCB from Improvised Electronics.


The Basic Simulator Control Board will serve as timing and control for either a blast or automatic weapons simulator running propane and oxygen. This board will allow the user to create their own custom effects inexpensively. The board is also capable of controlling air cannon based effects.


  • Digitally timed for superior performance and accuracy
  • Based on PIC16F628A Microcontroller
  • Rugged design with through hole components
  • Onboard selector switch for Gun or Blast function
  • Onboard rotary encoder to select fill time or fire rate
  • Works with standard solenoids and ignition coils
  • Voltage free contact closure input for triggering (RF modules sold separately)
  • Integrated safe separation and cycle timers for safety
  • Drop in replacement part for legacy control hardware
